8T Ultraviolet Water Purifier

1: Focus on UV industry for 30 years.
2: Make UV industry standard in China.
3:The exclusive manufacture which only producing UV
sterilizer equipment in China.
4:Product line covers all industries
5: Lifetime warranty for stainless steel housing
6: Provide perfect solution for every customer.
7:Own more than 70 invention patents and CE/Rohs
8: MOQ of OEM service is as low as one piece

Product Description:

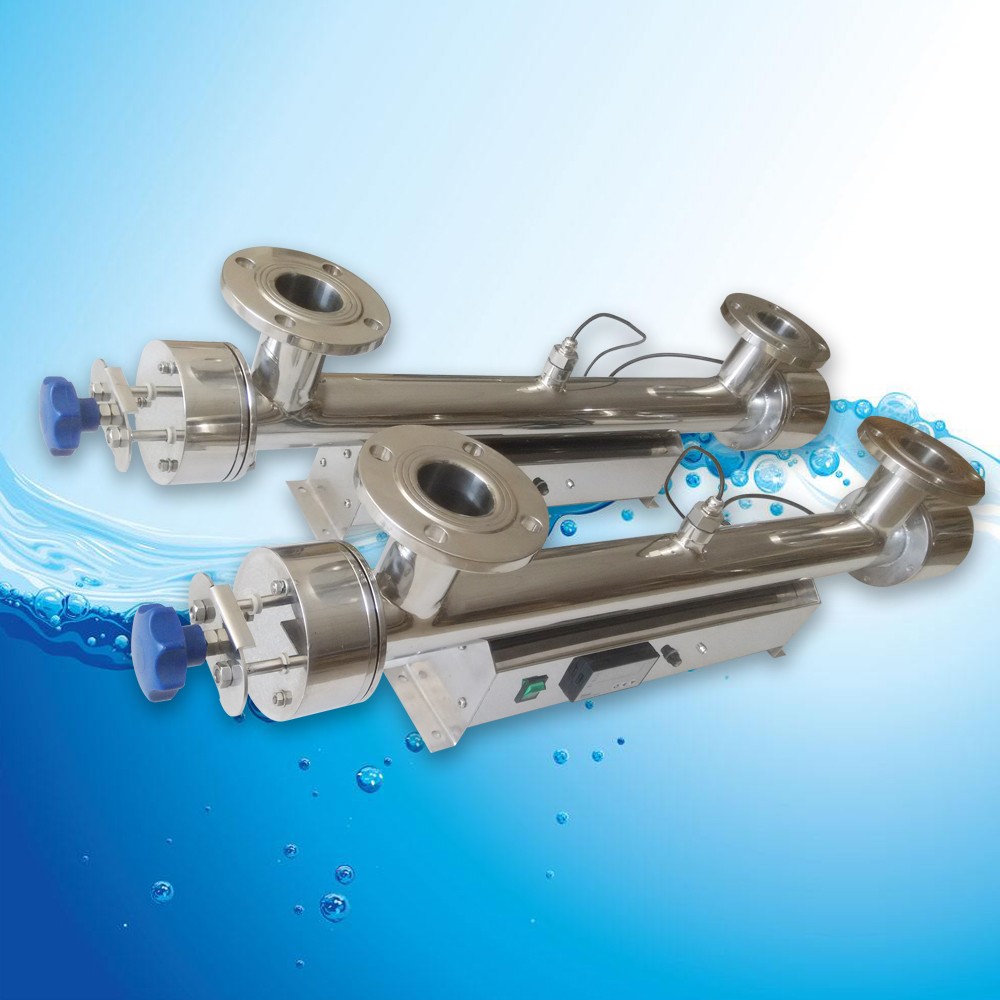

8T Ultraviolet Water Purifier:

Technical Parameters:

Model	FR-UV-WS8
Flow Rate (T/h)	8
Lamp Power (W)	120
NO. of Tubes (piece)	2
Rated Voltage	240V/110V
Lamp Life (h)	13,000
Inlet and Outlet Size	DN40 Flange
Chamber Diameter （mm）	φ159
Chamber Material	304 /316L
Equipment Pressure	1.0(MPa)
UV Dosage (mJ/cm²)	40
1: Above is standard features. 2: OEM service is available.

Disinfection principle of ultraviolet sterilizer:

Ultraviolet rays can be divided into three wavelength bands according to their biological functions: UV-A (320-400nm), UV-B (275-320nm), UV-C (200-275nm) and vacuum ultraviolet rays. In water treatment, the UV-C band of ultraviolet rays is actually used. In this band, ultraviolet light with a wavelength near 260nm has been identified as the effective band of ultraviolet rays with the highest sterilization efficiency.

UV sterilizer integrates comprehensive sciences such as optics, microbiology, mechanics, chemistry, electronics, and fluid mechanics. Imported and high-quality domestic high-efficiency, high-intensity and long-life UV-C ultraviolet light generators are used to irradiate the flowing water with UV-C ultraviolet light. When bacteria, viruses, etc. in the water are irradiated by a sufficient dose of UV-C ultraviolet light (wavelength 253.7nm). Its cell DNA and cell structure are destroyed, and cell regeneration cannot proceed, so as to achieve the effect of water disinfection and purification. Ultraviolet light with a wavelength of 185nm can also decompose organic molecules in water, generate hydrogen radicals and oxidize organic molecules in water to CO2 and H2O, and achieve the effect of removing TOC.
