Full Spectrum Fiber Optic Sensor For UV Curing System

Full Spectrum Fiber Optic Sensor For UV Curing System

Operating temp.: 0~60oC
Storage temp.: -10~70oC
Humidity: <80%
Body: fiber optic
Max. pressure: 10bar
Cable: Length 2.5m(longer on request)

About USD200-350/pcs according to your demands

Product Description:

Full Spectrum Fiber Optic Sensor For UV Curing System:

Technical Parameters:

Item	Content
Spectral Region:	200-440nm
Peak Spectrum:	390nm
Output Signal:	cutomized
Power Supply:	24VDC
Load Impedance:	>2KΩ
Mode of Connection:	customized
Measuring Span:	customized
Power Consumption:	< 2W
Operating Temperature:	-10-250C
Storage Temperature:	-10-70C
Case Material:	fiber optic
Connection size:	customized
Output Wire Length:	2.5m(can be customized)

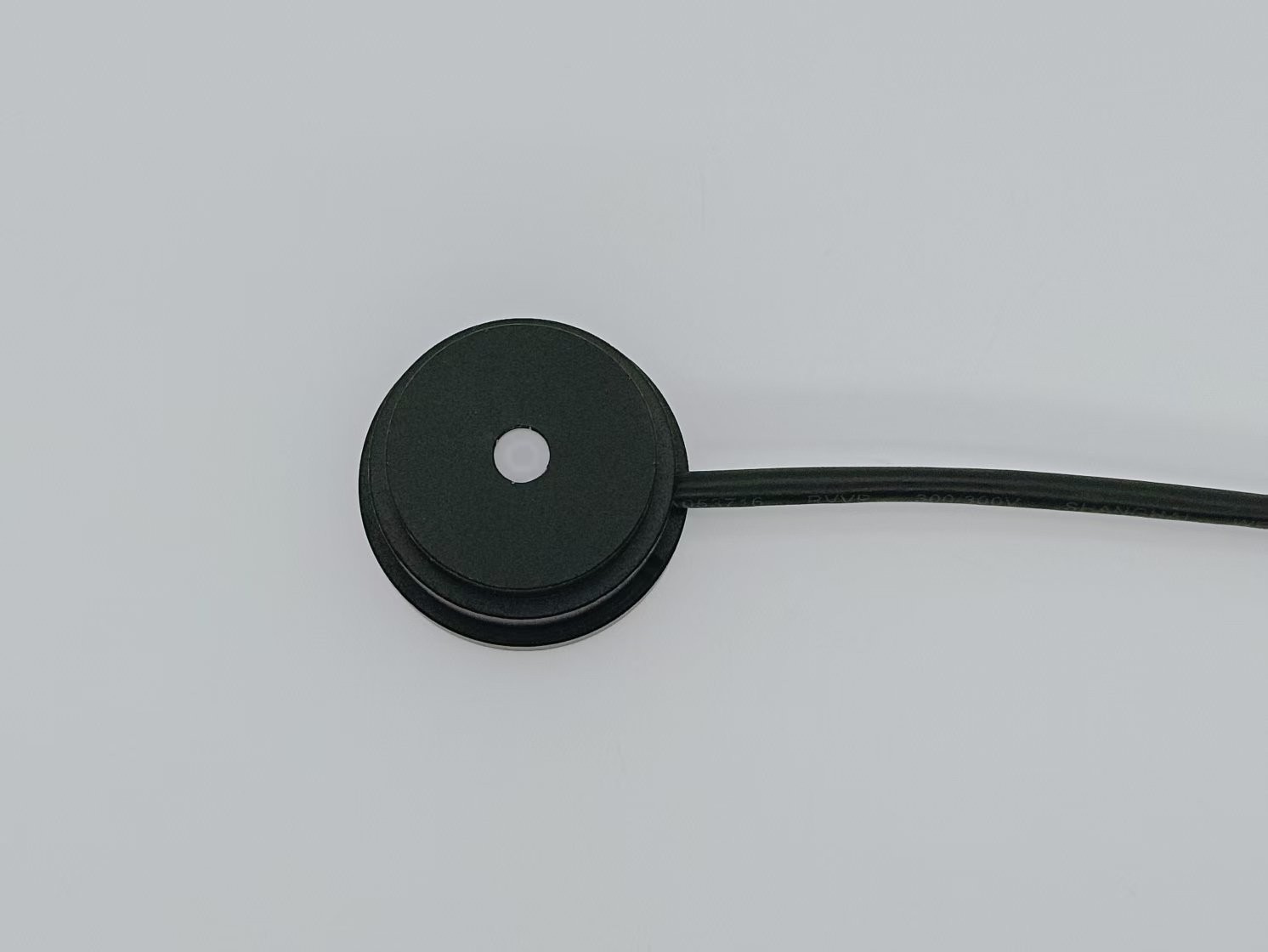

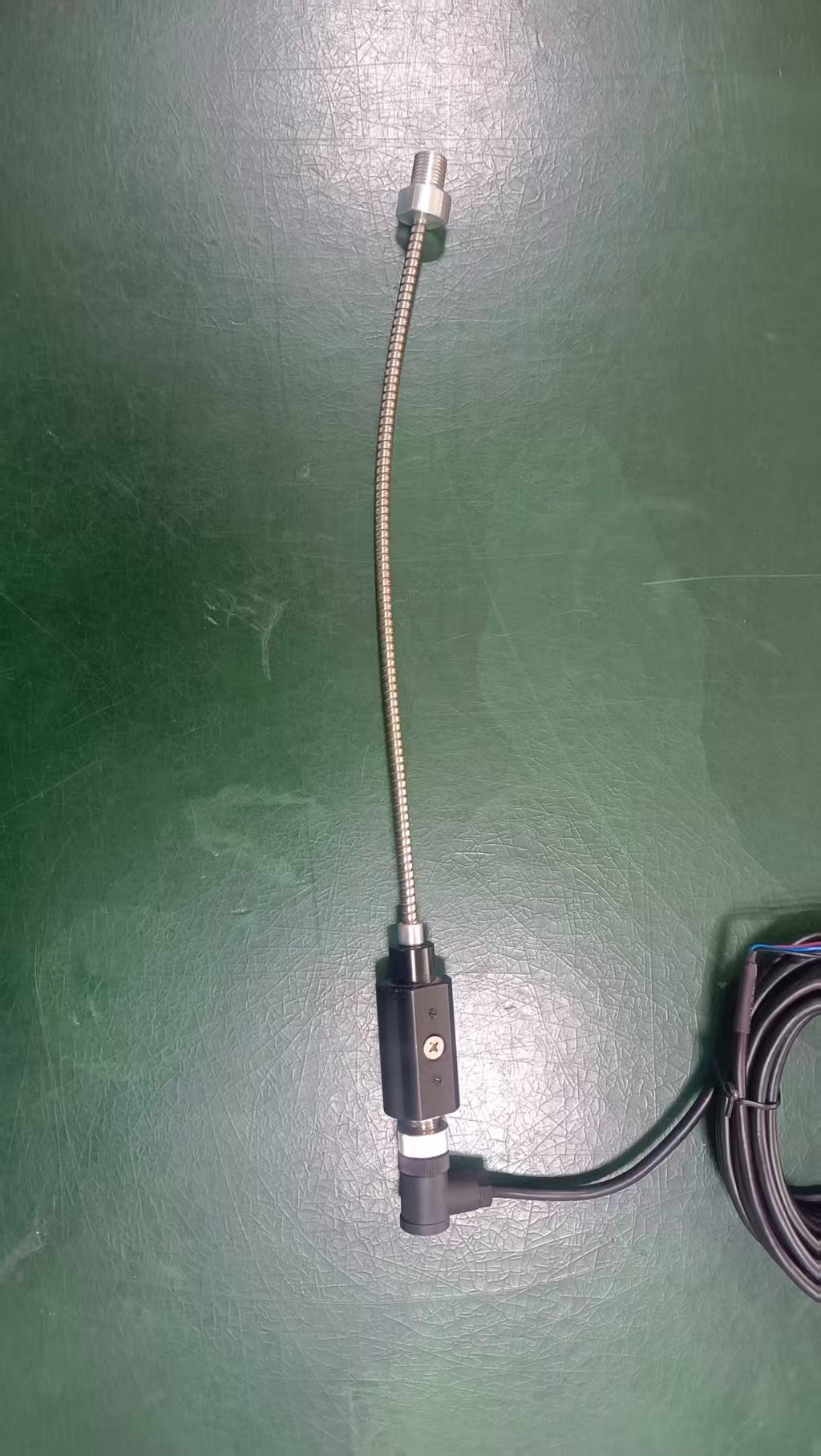

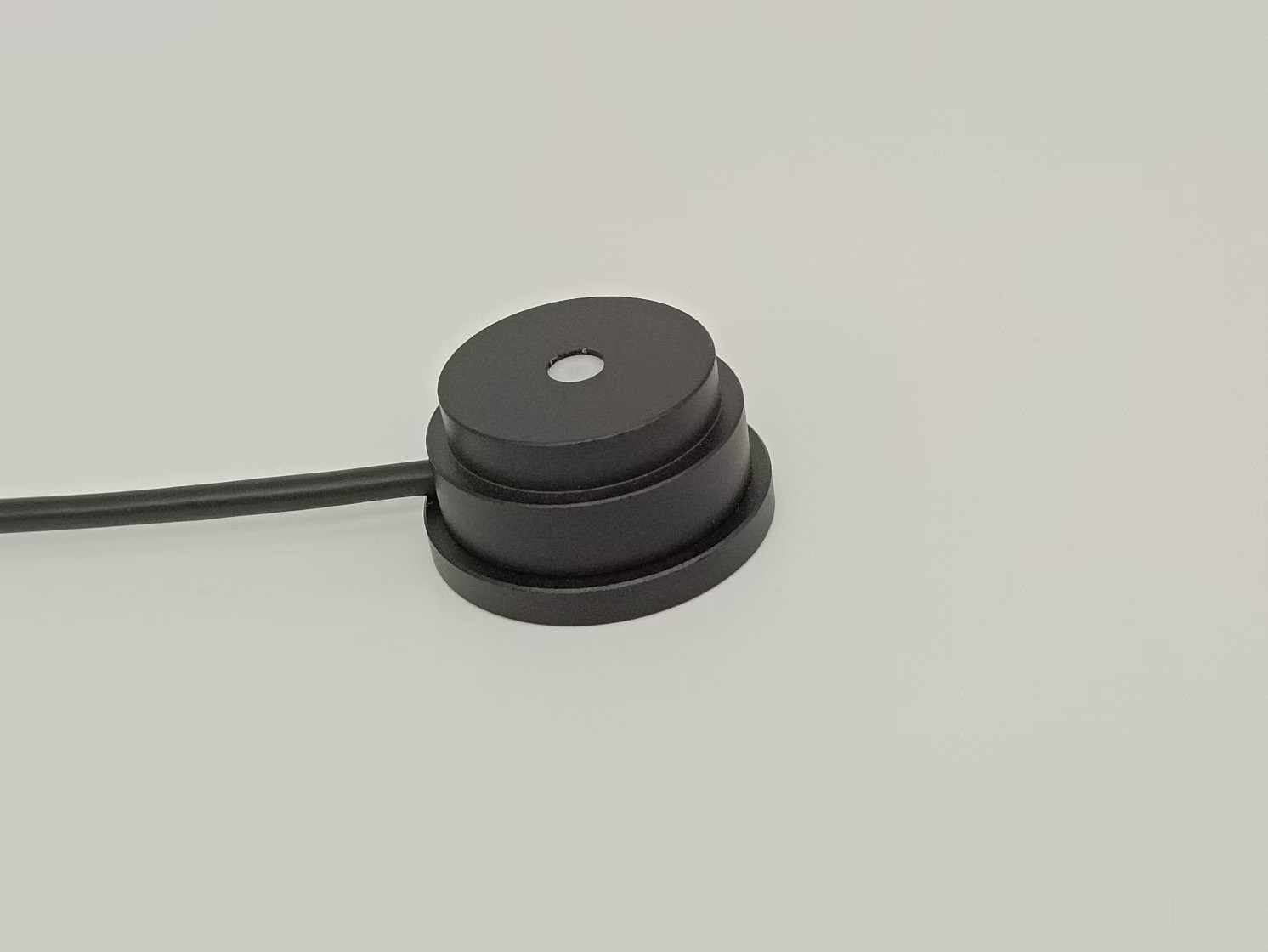

FIVER GEP-UVA-365FA is a voltage-output type UV irradiation probe, suitable for UV curing and xenon lamp aging applications. The sensor uses an InGaN-based UV photodiode, featuring high sensitivity and low dark current, and is matched with a unique high-temperature optical fiber light guiding technology, ensuring stable performance.
