Using an advanced MCU as the controller,stable and reliable. DIN 48*96mm standard panel size LCD digital display User-friendly operation method, easy to learn and use Universal 85~265VAC power supply. Accumulative function of UV light source working time. The illuminance relative value of the UV light source can be set, and an alarm will be given according to the set value.
About USD60-150/pcs according to your demands
S5AM LCD Display UV Intensity Monitor:
Technical Parameters:
Item | Content |
Measuring Range: | 0~20mW/cm² |
0-5VDC | |
Output Specifications: | 4-20mA or 1-5V |
Display Mode: | 16x2 LCD |
Power Supply: | 85～265VAC 50/60Hz |
Power Consumption: | ≤5W |
Installs Way: | Panel Type |
Hole Size: | 45mm*92mm |
Net Weight: | 320g |
Ambient Temperature: | 0～+60℃ |
Ambient Humidity: | 35～85％RH |

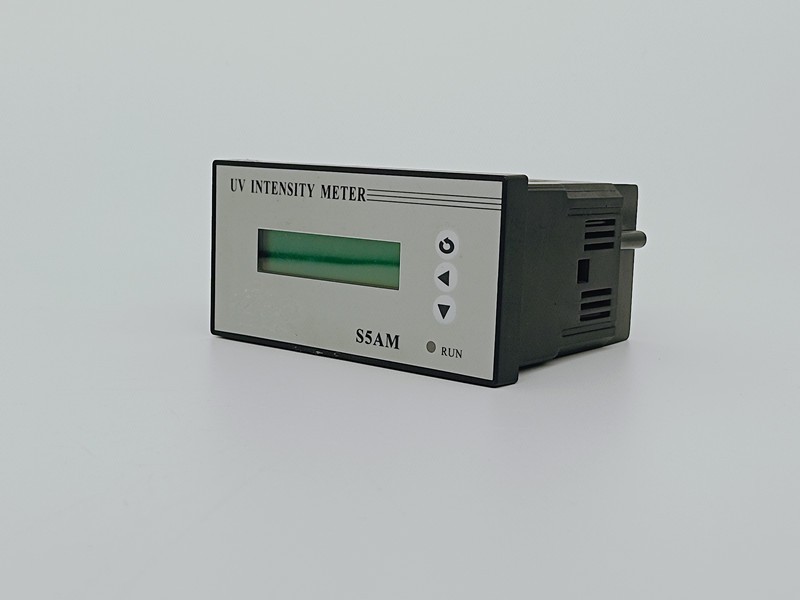

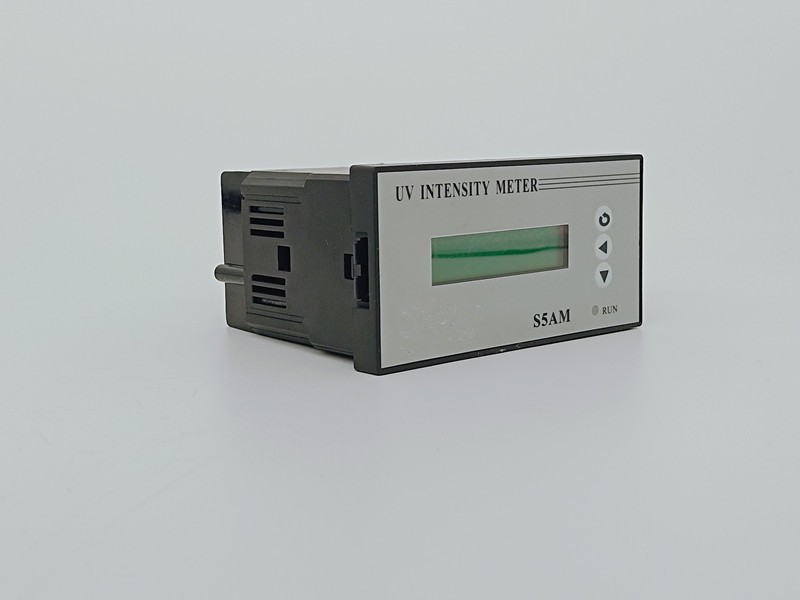

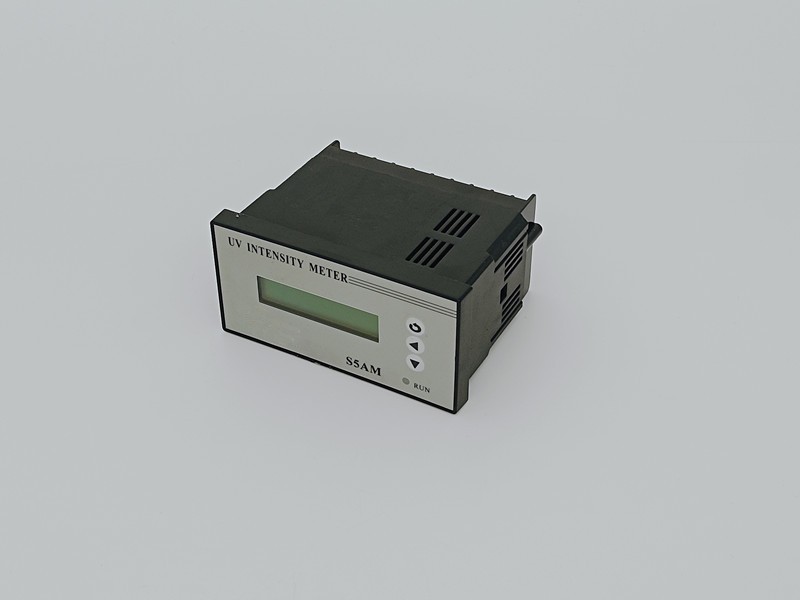

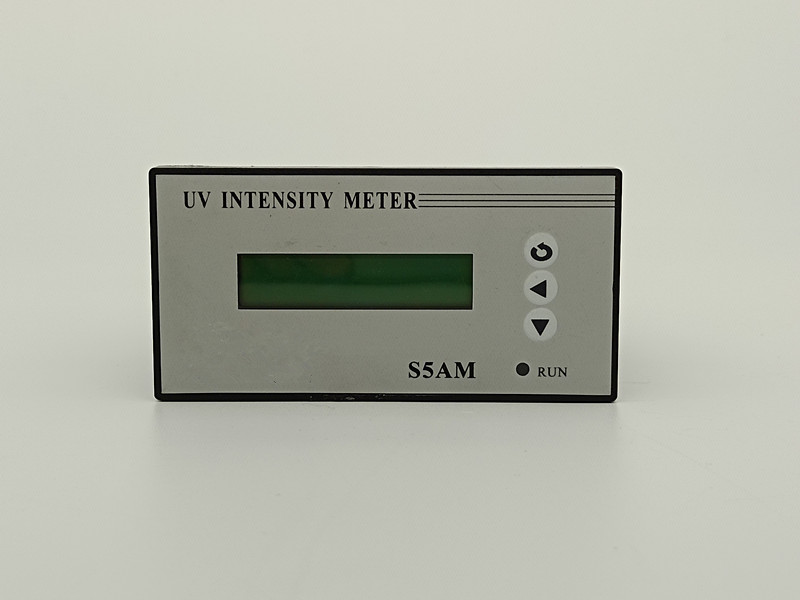

Real UV Intensity Monitor Pictures of FIVER:
FAQ of FIVER UV Intensity Meter:
Q1: What is a UV Meter?
A1: A UV meter is an instrument used to measure the intensity of ultraviolet (UV) light, It is commonly used in industries such as manufacturing, healthcare, and environmental monitoring to ensure proper UV exposure for applications like curing, sterilization, and UV radiation assessment.
Q2: What types of UV radiation can a UV Meter measure?
A2: A UV meter is capable of measuring various types of UV radiation, including UVA (320-400 nm), which is commonly used in tanning and curing processes; UVB (280-320 nm), which plays a key role in environmental monitoring and healthcare, particularly in skin-related studies; and UVC (100-280 nm), which is highly effective in sterilization and disinfection. Each type of UV radiation has specific applications, and a UV meter can be designed to measure one or multiple types depending on its sensors and filters.
Q3: Can a UV Meter measure UV radiation from sunlight?
A3: Yes, a UV meter can measure UV radiation from sunlight. It’s commonly used in environmental monitoring to assess the levels of UVA and UVB radiation, which are the types of UV light that reach the Earth's surface. This information is crucial for understanding UV exposure risks, studying environmental impacts, and ensuring public safety.
